103693

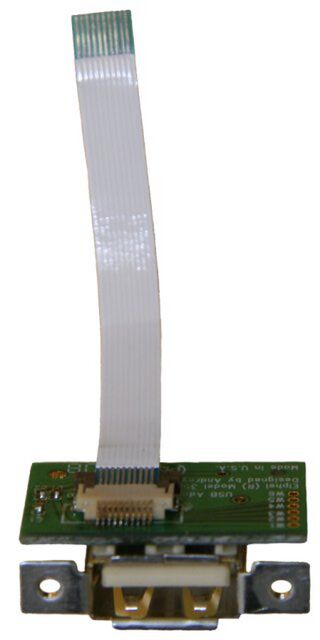

103693 - Adapter board with USB type A connector

103693 Circuit Diagram, Parts List, PCB layout     103693 Gerber files

103693 Rev"A" Circuit Diagram, Parts List, PCB layout     103693 Rev "A" Gerber files

103693 is an adapter board with External USB type A female USB connector s mounted on the back panel of the Elphel Model 353 camera. It is used with the 10369 board.

Connectors

---

J1 - to 10369 board

USB , i2c, GPIO, 3.3V power from 10369 board

Pin	Signal	Notes
1	VP33	+3.3V power
2	AUX1	GPIO
3	AUX0	GPIO
4	I2CSDA
5	I2CSCL
6	GND
7	VBUSI	USB +5V power
8	DM	USB data -
9	DP	USB data +
10	GND

---

J2 - USB

external USB connector

Pin	Signal	Notes
1	VBUSO	USB +5V power
2	DM	USB data -
3	DP	USB data +
4	GNDL	USB GND

---

W1..W6 - solder points

W1..W6 - solder points for optional connections

Pin	Signal	Notes
W1	VP33	+3.3V power
W2	AUX1	GPIO
W3	AUX0	GPIO
W4	I2CSDA	I2C SDA
W5	I2CSCL	I2C SCL
W6	GND
